High Precision Radar Level Gauge 80GHz For Liquid In Small Container Measuring Range 10m IP67 Sensor Meter Transmitter
Product Description:
Radar Liquid Level Gauge is 80GHz non-contact radar can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this is an ideal solution for level control in the production process.
Features:
- 1.80GHz FMCW technology
2.False echo suppression option

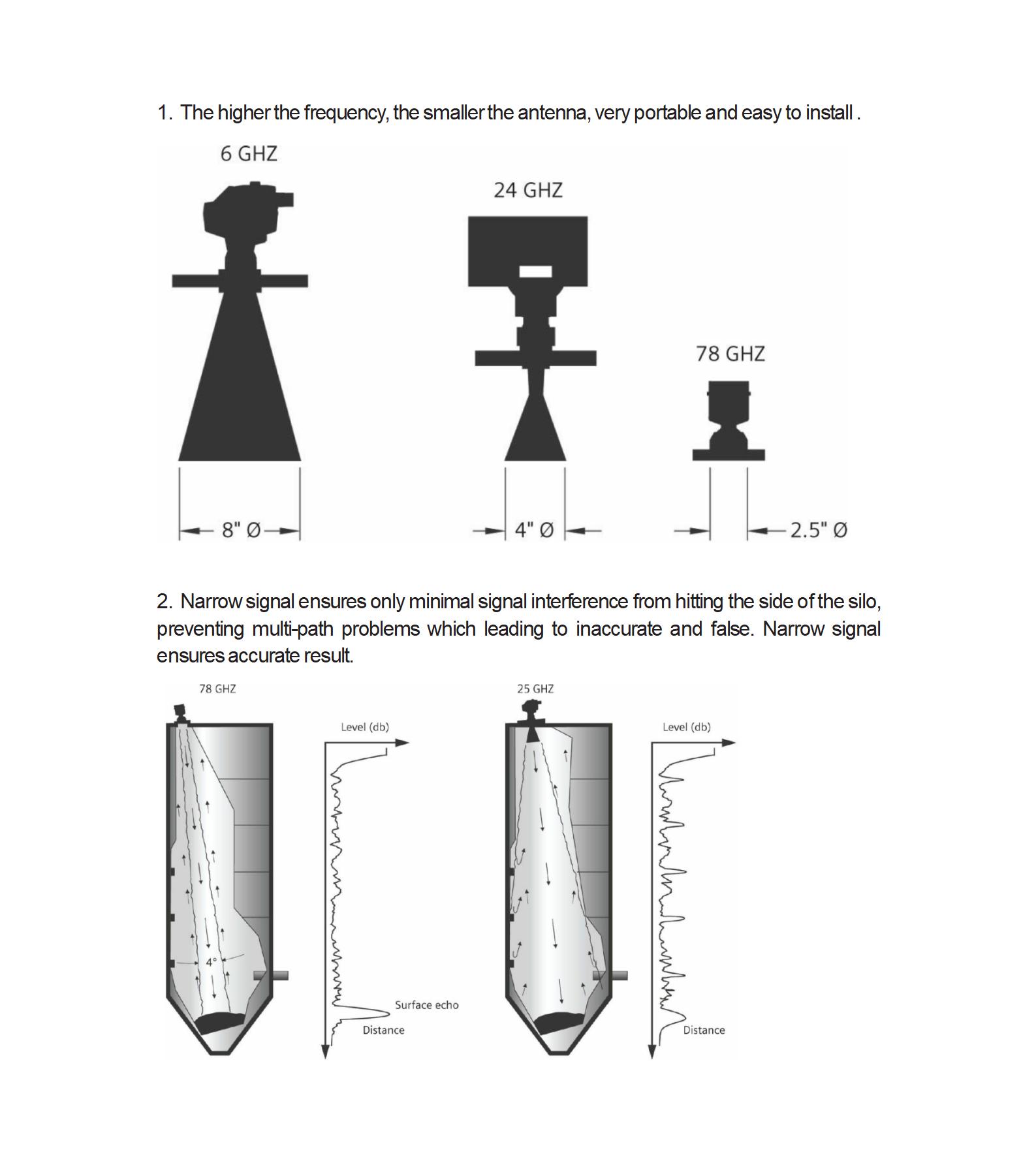

3.Narrow beam, small blind zone and accurate measurement
4.Unaffected by temperature fluctuations
5.Resistant to dirt and buildup
6.Measurement under vacuum and high pressure
7.Small size, easy to use, less maintenance
Technical Parameters:
| Parameter | Value |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Temperature Range | -40℃~+120℃ |
| Resolution | 1mm |
| Protection Level | IP67 |
| Application | Liquid in small container |
| Measuring Frequency | 80GHz |
| Process connection | Thread G3/4 ; Flange from DN30 |
| Output | RS485/MODBUS; 4…20mA/HART |
| Measuring Range | 0.15m~10m |
Applications:
The 80G Radar Level Gauge is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80GHz Radar Level Gauge is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
Packing and Shipping:
The 80GHz Radar Level sensor is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Sensor is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
The tracking number will be provided to the customer upon shipment to allow for tracking of the shipment.
