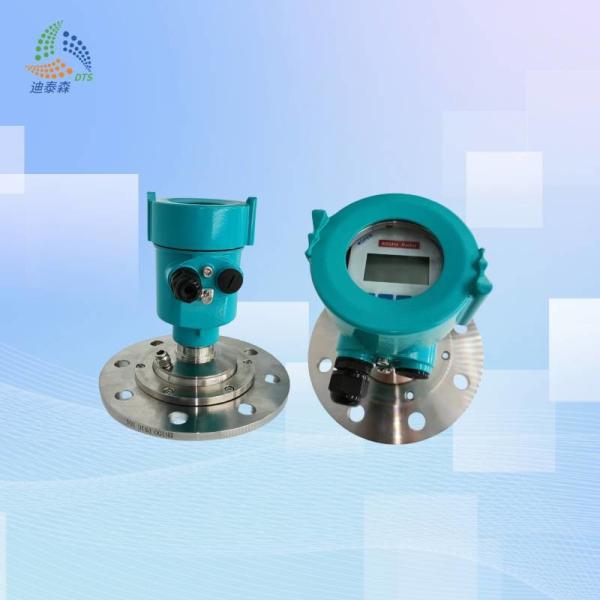

80GHz 1200℃ Radar Level Meter Sensor Bulk Solid Dust Swivelling Mounting Nitrogen Purge Connection
Product Description:
The Radar Level Meter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions.With its advanced microwave level sensor technology, the 80GHz Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
Features:
- 1. The measurement accuracy of millimeter-wave radar can reach ± 1mm, and the measurement blind area is 50mm.
2. Smaller antenna size, to meet the more working conditions for measurement.
3.A variety of lens antennas, 3 emission Angle, more concentrated energy, stronger echo signal, under the same industrial and mining conditions, with higher reliability than other radar products.
4. It is more penetrating and can be used normally in the case of adhesion and condensation.
5.The dynamic signal range is larger and is more stable for measurements of low permittivity media.
6.Multiple measurement modes, and the radar reaction time is less than 1S in the rapid measurement mode. -
Technical Parameters:
| Model | DTS-RD-85 |
| Application | Bulk Solid Powder And Dust |
| Measuring Range | 120m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Process Temperature | -40℃~+1200℃ |
| Process pressure | (-0.1~0.3)MPa |
| Process Connection | Flange from DN80 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
Applications:
This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
