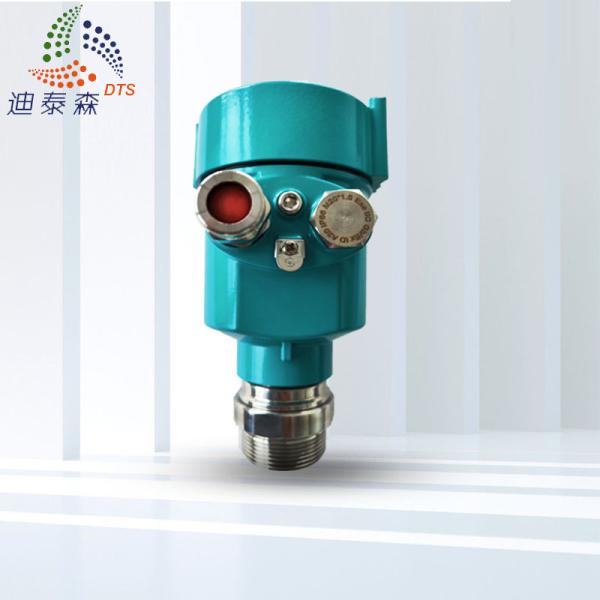

DTS-RD-82-B 30m Radar Level Indicator High Precision High Sensitivity 80GHz Radar Liquid Level Sensor Meter Gauge
Product Description:
The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.
Features:
-
1. The antenna size of the high frequency level meter is small and easy to install, which enhances its non-contact radar and eliminates any wear and pollution.
-
2. Almost all forms of corrosion and foam barely effect this radar, and while water vapor, temperature, and pressure changes in the atmosphere may affect it, the changes are minimal. -
3. In dusty environments, this level meter remains unaffected and continues to use and perform its tasks. -
4. The shorter wavelength allows the high frequency level meter to operate better while bouncing signals off of tilted solid surfaces.
-
5. The beam angle is significantly small, which makes the radar more capable of concentrating the energy it uses as well as enhancing the echo ability to better avoid interference objects.
-
-
-
Technical Parameters:
| Model | DTS-RD-82-B |
| Application | Liquid |
| Measuring Range | 30m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Process Temperature | -40℃~+120℃ |
| Process pressure | (-0.1~0.1)MPa |
| Process Connection | Thread G1½; Flange from DN50
|
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
This DTS-RD-82-B Radar Level Transmitter is applicable for segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Cosmetics tanks, Alcohol tanks, Water Tanks, Waste water, River, Lake, Reservior etc, all these could use DTS-RD-82-B to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
