PTFE Radar Level Instrument HART Radar Gauge For Level Measurement

Brand Name : DTS

Model Number : DTS-RD-82-C

Place of Origin : China

Certification : CNEX

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000

Packaging Details : Carton

Grade : Industrial

Customized support : OEM, ODM

Model : DTS-RD-82-C

Application : Liquid; Corrosive liquid

Measuring Range : 30m

Frequency : 80GHz

Material : Stainless Steel+PTFE

Process Temperature : -40℃~+120℃

Contact Now

Radar Level Instrument IP67 Protection 80GHz Radar Level Meter Gauge Transmitter Sensor 30m for Corrosive liquid

Product Description:

Radar level measuring instrument is an advanced device for distance measuring. With its optimization on the antenna, it can measure up to 30 meters accurately. Additionally, it comes with powerful microprocessors, allowing the device to analyze signals faster and enables it to be used in complex conditions, such as level of corrossive and pressure liquid. The device is valuable for multiple industries.

Features:

80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance

Technical Parameters:

Model	DTS-RD-82-C
Measuring range	30m
Application	Corrosive liquid; Liquid
Protection Level	IP67
Process Connection	Thread G1½; Flange DN50
Power Supply	Two Wires DC24±6V; Four Wires AC220V
Connection	Bluetooth/NB-iot/4G
Frequency	80GHz
Accuracy	±2mm
Process Temperature	-40℃~+120℃
Process Pressure	-0.1~0.1MPa
Material	Stainless Steel+PTFE
Signal output	4…20mA/HART
Digital output	RS485/MODBUS

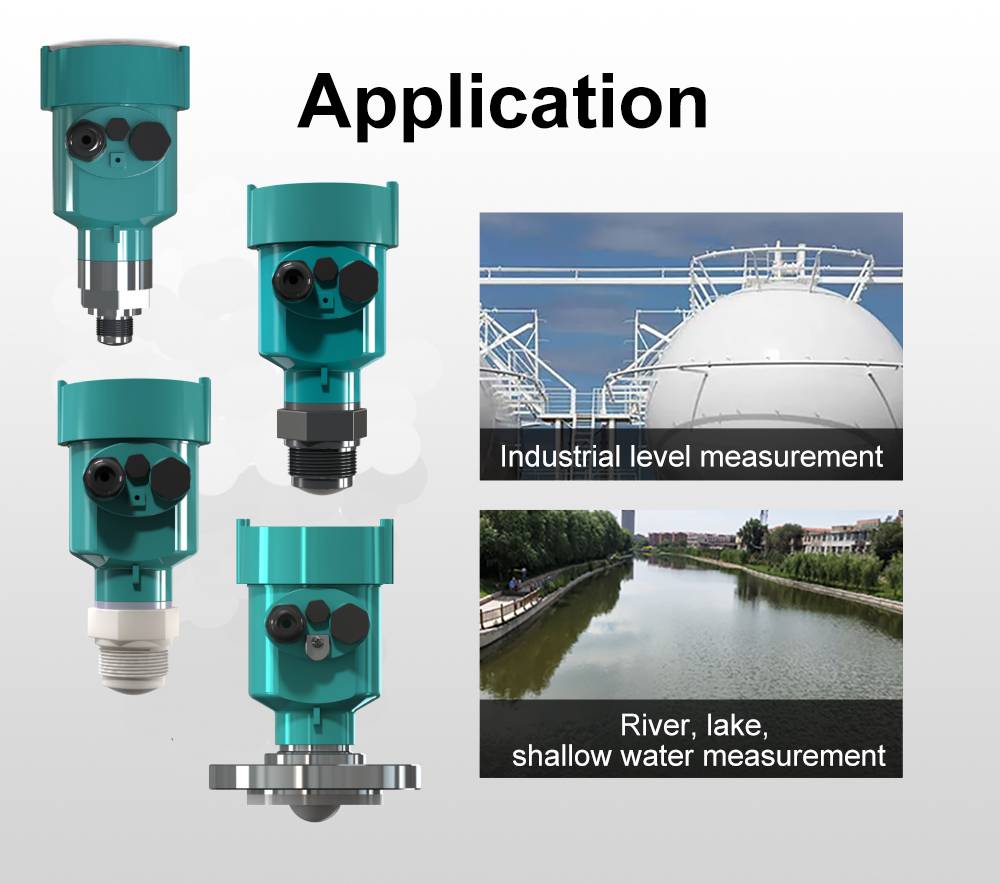

Applications:

PTFE Radar Level Instrument HART Radar Gauge For Level Measurement

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

PTFE Radar Level Instrument HART Radar Gauge For Level Measurement
