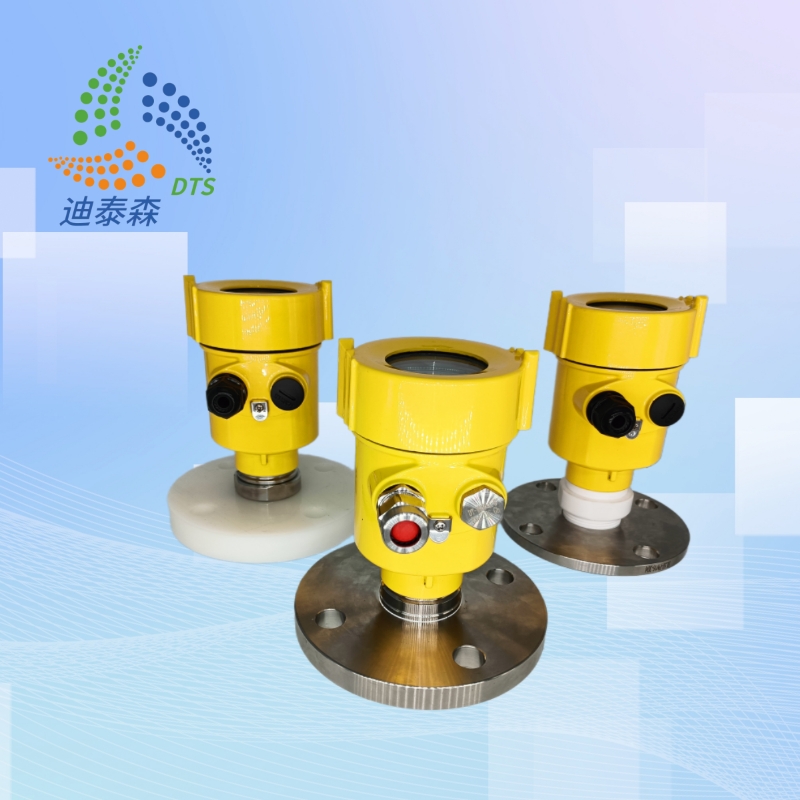

80Ghz Radar Level Gauge For Corrosive And Pressure Liquid With IP67 -0.1~2.5MPa Radar Level Sensor Transmitter
Product Description:
DTS-RD-8X series 80GHz non-contact radar can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Technical Parameters:
| Model | DTS-RD-83-A |
| Measuring range | 30m |
| Application | Corrosive and pressure liquid |
| Frequency | 80GHz |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Accuracy | ±2mm |
| Material | Stainless Steel+PTFE |
| Protection Level | IP67 |
| Process Connection | Flange from DN50 |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Process temperature | -40~+120℃ |
| Process pressure | (-0.1~2.5)MPa |
Advantage:

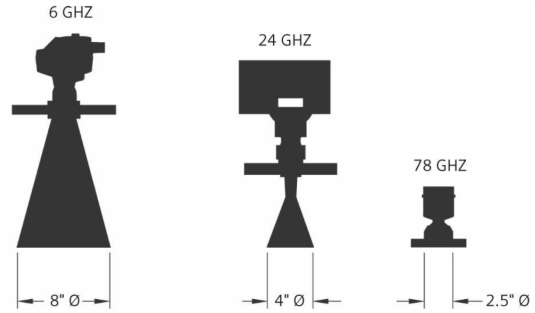

1.The higher the frequency, the smaller the antenna, very portable and easy to install.

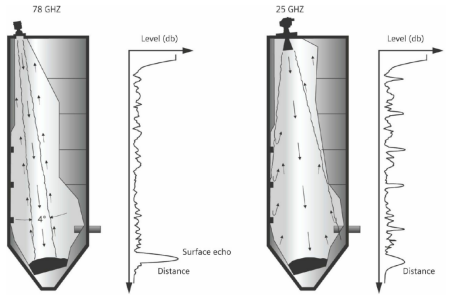

2.Narrow signal ensures only minimal signal interference from hitting the side of the silo, preventing multi-path problems which leading to inaccurate and false. Narrow signal ensures accurate result.
Packing and Shipping:
The 80G Radar Level Gauge is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
