Product Description:

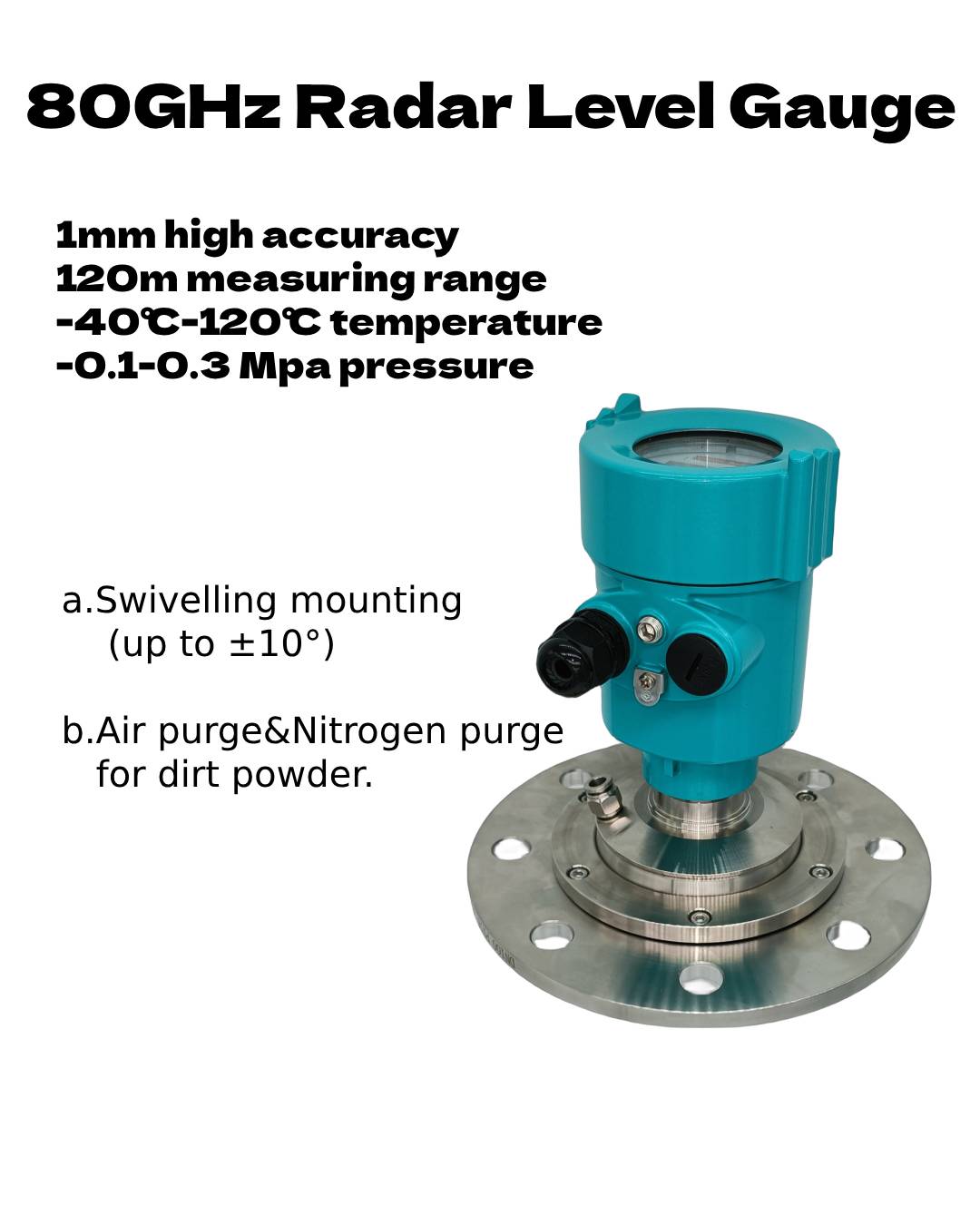

Continuous level measurement in liquids and solids with free space radar sensors
Radar level measurement with top-down installation of a radar sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Swivelling mounting,Easily adjustable (up to ±10°)
Air purge connection or Nitrogen purge connection,efficient cleaning.
Technical Parameters:
| Protection Level | IP67 |
| Range | 0.3-120m |
| Name | Level Detector Radar / Radar Level Sensor / Radar Liquid Monitor |
| Output | 4-20mA, RS485 |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
| Material | Stainless Steel//PTFE |
| Frequency | 80GHz |
| Process pressure | (-0.1~0.3)MPa |
| Resolution | 1mm |
| Temperature Range | -40~+120℃ |
Applications:
The 80G Radar Level Meter is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.
Installation:
