Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Brand Name : DTS

Model Number : DTS-RD-80

Certification : CNEX

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000

Packaging Details : Carton

Grade : Industrial

Customized support : OEM, ODM

Model : DTS-RD-80

Measuring range : 85m

Application : Rivers, embankments, lakes etc

Accuracy : ±1mm

Process temperature : -40~85℃

Process pressure : (-0.1~0.3) MPa

Signal output : (4~20) mA(Supports Bluetooth)/RS485

Beam angle : 6°

Power supply : (9~36) VDC

Installation method : Bracket, flange, thread

Contact Now

Non Contact Radar Water Level Transmitter Sensor Meter 76-81GHz Iiquid FMCW

Product Description:

Non Contact Radar Level Transmitter is a reliable and accurate level measurement device. It can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, this series is an ideal solution for level control in the production process.

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Features:

80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance
Highly chemically resistant materials ensure long service life of the sensors

Technical Parameters:

Model	DTS-RD-80
Application	Rivers, embankments, lakes etc
Measuring Range	85m
Accuracy	±1mm
Frequency	80GHz
Process Temperature	-40℃~+85℃
Process Pressure	(-0.1~0.3) MPa
Process Connection	Bracket, flange, thread
Output Signal	4…20mA/HART
Connection	Bluetooth/NB-iot/4G
Protection Class	IP68
Power Supply	(9~36) VDC
Material	Stainless Steel+PTFE

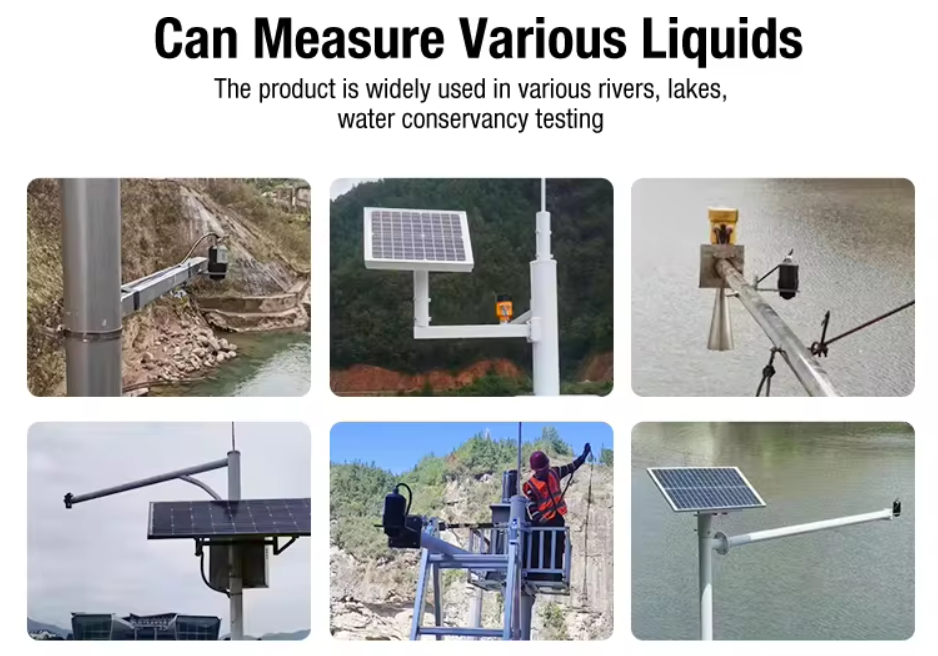

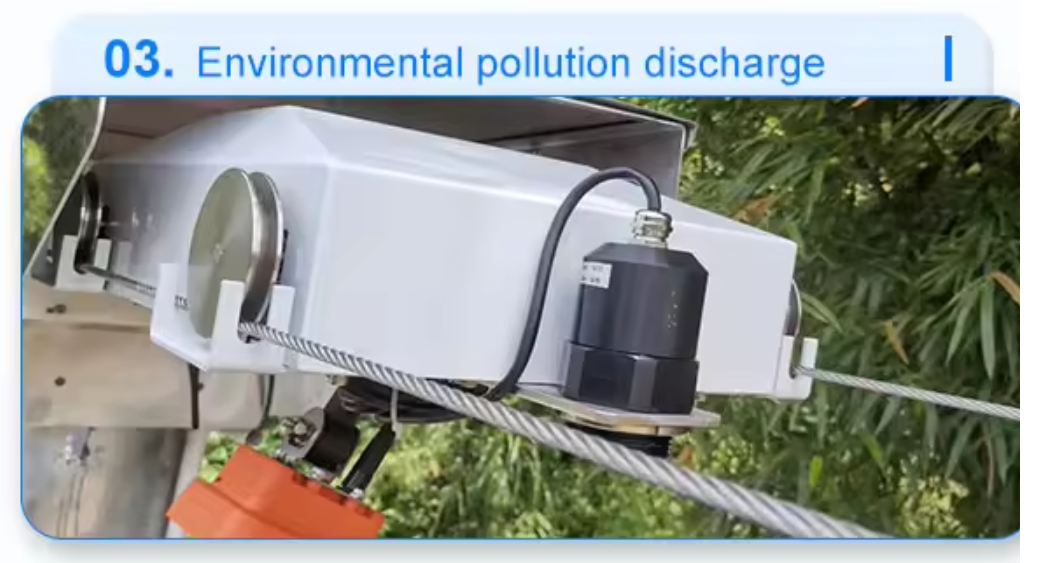

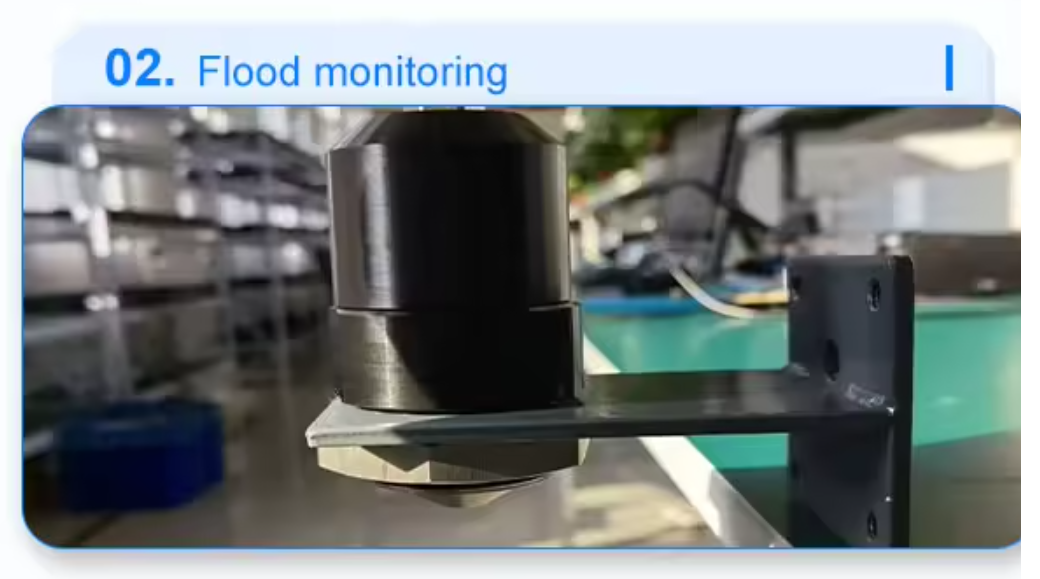

Applications:

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid

Packing and Shipping:

The Non Contact Radar Level Transmitter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

Non Contact Radar Water Level Sensor Meter 76-81GHz Liquid Images
