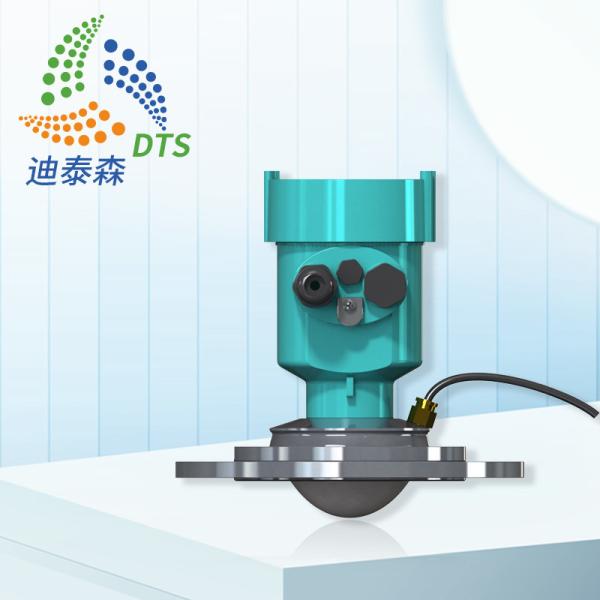

120m 120℃ Radar Level Transmitter Bulk Solid Powder Dust Swivelling Mounting Air/Nitrogen Purge Connection Sensor
Product Description:
The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance - Swivelling mounting,Easily adjustable (up to ±10°)
- Air purge connection or Nitrogen purge connection,efficient cleaning.
-
Technical Parameters:
| Model | DTS-RD-85-A |
| Application | Bulk Solid Powder And Dust |
| Measuring Range | 120m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Process Temperature | -40℃~+120℃ |
| Process pressure | (-0.1~0.3)MPa |
| Process Connection | Flange from DN80 |
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
Applications:
This DTS-RD-85-A Radar Level Transmitter is applicable for high silos, segmented containers, containers with mising systems, silos with reforcing struts, mounting close to the vessel vall. Such as Grain Storage, Bran, Fumed silica, Very light fly ash, Plastic powder, Dry wood chips, Cement, Cement silo etc, all these could use DTS-RD-85-A to monitor the level.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
